CSB UPS122406 F2 备用

发布者:system2021-11-12

产品介绍

<p class="ah1" color:#505050;text-decoration:none;"="" style="padding: 5px 0px; margin-top: 0px; margin-bottom: 0px; line-height: 28px; font-family: "Microsoft Yahei", Arial, Helvetica, sans-serif; font-size: 14px; white-space: normal; background-color: rgb(255, 255, 255);">

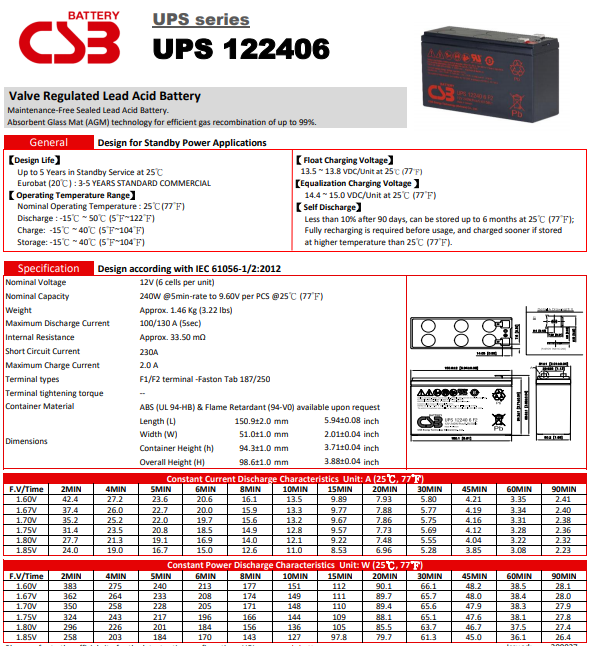

规格书
局数6
电压值12 V
安培数40W @ 5min-rate to 1.60V per cell @25°C (77°F)
重量Approx . 1.46 Kg (3.22 lbs)
最大放电电流100/130A (5sec)
内阻Approx . 33.5 mΩ
温度工作范围Discharge:-15℃~50℃ (5°F~122°F)
Charge:-15℃~40℃ (5°F~104°F)
Storage:-15℃~40℃ (5°F~104°F)
一般使用温度工作范围25°C ±3°C (77°F ± 5°F)
浮充使用充电电压13.5 to 13.8 VDC/unit Average at 25°C (77°F)
议充电最大电流值2.0A
均充使用充电电压14.4 to 15.0 VDC/unit Average at 25°C (77°F)
自放电Less than 10% after 90 days, can be stored up to 6 months at 25℃ (77℉)
端子F1/F2 terminal -Faston Tab 187/250
电槽材质ABS (UL 94-HB) & Flame Retardant (94-V0) available upon request
